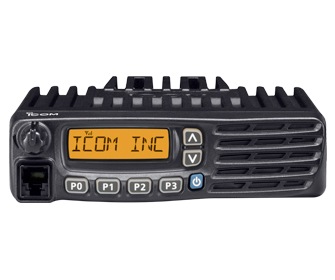

iDAS MOBILE TRANSCEIVER IC-F5121D / IC-F6121D
Everything you'd expect in a business radio ... Plus Digital!
128 channels with 8 zones
Ample 128 channel capacity allows most companies plenty of room to grow. Up to 8 zones lets you group together channels in logical fashion.
Built military rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810 F.
Compact hand microphone
Select from 5 levels of mic gain, for clearer transmission.
GPS receiver connection
With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.
Large programmable buttons
For easy access to often used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time opeartion.
Powerful, front-facing speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle's cabin. Digital modulation adds distinct clarity to received voices.
IDAS™ digital mode operation
The IC-F5121D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.
- PTT ID
- Individual/Talkgroup list (Max. 500)
- RAN (Radio Access Number)
- Status
- SDM (Short Data Message)
- Call alert
- Radio check (RX)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Emergency (No ACK)
- Digital voice scrambler
- GPS data (PC and software required to show received position data)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.
MDC 1200 compatible (Analog mode)
The following MDC features are available with the built-in MDC signaling.
- PTT ID
- Radio check (RX)
- Emergency (No ACK)
- Stun/Revive (RX)
- 500 alias table (Max.)
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.
Lone worker function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.
Other features
- CTCSS/DTCS encoder/decoder*
- 8 DTMF autodial memories
- Microphone hanger action programmable
- Optional DTMF microphone (HM-152T)
- PC programmable
- Power-on password function
- Time out timer
- Talk around function
- Nuisance delete function*
- Forced narrow function*
TX: Transmit, RX: Receive
HAND MICROPHONES
| HM-152 |
| HM-152T | DTMF type
| HM-148G | Self-grounding type
| HM-148T | Self-grounding type with DTMF keypad
| SM-26 | | | |
| SP-30 |
| SP-22 | | |
| OPC-2078 | 25-pin
| OPC-1939 | 15-pin
General
| IC-F5121D | IC-F6121D | |||||||
| Frequency coverage | 136-174MHz | 400-470MHz 450-512MHz | |||||||
| Number of channels | 128 channels (8 zones) | Channel spacing | 6.25/15/30kHz, 6.25/12.5/25kHz | 6.25/12.5kHz | |||||
| Type of emission | 16K0F3E, 11K0F3E, 4K00F1E/F1D | 11K0F3E, 4K00F1E/F1D | |||||||
| Current drain (approx.) | Tx | High (50W/45W) | 10A | 11A | Rx | Stand-by | 300mA | Max. audio | 1.2A |
| Dimensions (projections not included; W×H×D) | 150×40×167.5 mm; 5.91×1.57×6.59 in | Weight | 1.1kg; 2.4lb | ||||||
Transmitter
| IC-F5121D | IC-F6121D | |||||||||
| RF output power (at 13.6V DC) | 50W, 25W, 5W (Hi, L2, L1) | 45W, 25W, 4.5W (Hi, L2, L1) | |||||||||
| Spurious emissions | 72dB (min.) | Frequency stability | ±1.0ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 46/40dB typ. (Wide/Narrow) | 40dB typ. (Narrow) | |||
Digital FSK error | 5% max. | ||||||||||
| IC-F5121D | IC-F6121D | |||
| Sensitivity | 0.25μV typ. (at 12dB SINAD) 0.18μV typ. (at 5% BER) | Adjacent channel selectivity | 80/70dB typ. (Wide/Narrow), 65dB typ. (Digital) | 70dB typ. (Narrow), 60dB typ. (Digital) | |
| Spurious response rejection | 70dB min. | Intermodulation rejection | 75dB typ. (Wide/Narrow), 70dBμV emf type. (Digital) | 75dB typ. (Narrow), 70dBμV emf type. (Digital) | |
| AF output power (at 5% distortion with an 4Ω load) | 4W (typ.) | ||||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Humidity Induced | 507.4 |
Settling Dust | 510.4 III |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
