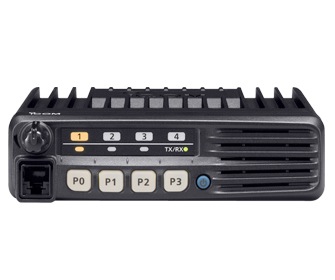

VHF/UHF Mobile Transceiver IC-F5012 IC-F6012
Simple operation, versatile functions & rugged construction for your day-to-day communication needs
Simple operation for instant communication
The IC-F5012 series has 8 channels. The P0-P3 programmable buttons allows you to customise the radio to suit your needs and convenience.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.
Multiple 2-Tone, multiple 5-Tone
Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.
MDC 1200 compatible
The IC-F5012 series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
* No ACK transmission
Enhanced scan features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Remote channel control with optional ACC cable
Photo includes optional OPC-2078. The optional ACC cable allows you to connect with various external devicesto control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.Built military rugged
The IC-F5012 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.
Other features
- 4W (typ.) front mounted speaker
- Wide frequency coverage (136–174 and 400–470MHz)
- Wide/middle/narrow channel spacing (25, 20, 12.5kHz)
- Microphone hanger action programmable
- Optional DTMF microphone (HM-152T/HM-148T)
- Optional voice scrambler unit, UT-109R or UT-110R
- DTMF autodial and optional DTMF decoder, UT-108R
- PC programmable
- Talk around function
- Power-on password function
- Nuisance delete function
- Time-out-timer, lock-out penalty timer
HAND MICROPHONES
| HM-152 |
| HM-152T | DTMF type
| HM-148G | Self-grounding type
| HM-148T | Self-grounding type with DTMF keypad
| SM-26 | | | |
| SP-30 |
| SP-22 | | |
| UT-108R | DTMF Decoder
| UT-109R | Voice Scrambler
| UT-110R | Voice Scrambler |
| OPC-2078 | 25-pin
| OPC-1939 | 15-pin |
General
| IC-F5012 | IC-F6012 | ||||||||||||||||||||||||||||||||||
| Frequency coverage | 136-174MHz | 400-470MHz | ||||||||||||||||||||||||||||||||||
| Number of channels | 8 channels | Channel spacing | 25/20/12.5kHz | Type of emission | 16K0F3E, 14K0F3E, 8K50F3E | Current drain (approx.) | Tx | High (25W) | 5A | Rx | Stand-by | 250mA | Max. audio | 700mA | Dimensions (projections not included; W×H×D) | 150×40×117.5 mm | Weight | 0.8kg | ||||||||||||||||||
Transmitter
| IC-F5012 | IC-F6012 | ||||||||||||
| RF output power | 25W, 10W, 2.5W (Hi, L2, L1) | Spurious emissions | 0.25μV (≤1GHz) 1.0μV (>1GHz) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typ. (AF 1kHz 40% deviation) | Residual modulation (W/M/N) | 55/53/50dB typ. | |||||
Receiver
| IC-F5012 | IC-F6012 | ||||||||||||
| Sensitivity at 20dB SINAD | –4dBμV (typ.) emf | Adjacent channel selectivity (W/M/N) | 75/75/65dB (typ.) | Spurious response rejection | 70dB min. | Intermodulation rejection | 67dB (typ.) | AF output power (at 5% distortion with an 4Ω load) | 4W (typ.) | |||||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Humidity Induced | 507.4 |
Settling Dust | 510.4 III |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
