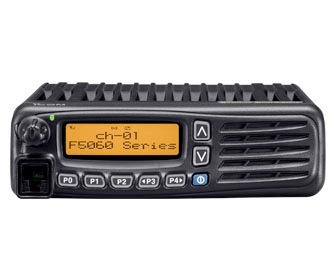

VHF/UHF Mobile Transceiver IC-F5063 IC-F6063
LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE PROFESSIONAL MOBILE!
Designed for public safety, transportation and delivery service users, the IC-F5063 series offers advanced multi-mode operations, 6.25kHz digital option, improved scanning and flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
* Optional UT-119H required.
Built-in basic LTR™ mode operation
Group, selective and phone calls are available in built-in LTR™ mode. MDC signaling is also available on LTR™ mode.
Optional 6.25kHz digital mode ready
Optional 6.25kHz digital mode is available. (See page 5 for details.)
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
IP54 dust-protection and splash resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5061 series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Voting scan
The voting mode scanning detects the S-meter level of repeater stations and automatically selects the strongest station or the first station to exceed the preset S-meter level, useful for roaming 2 or more repeater sites.
Other features
- The mode slave setting automatically selects the scanning list, according to the operating channel
- Nuisance delete
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
- Large dot matrix display and multi-function LCD
- 8 DTMF autodialing memories and ANI function
- D-Sub accessory connector, ignition sensing line and more...
SEPARATION KITS
| RMK-3 | | | |
| OPC-607 | (3m; 9.8ft)
| OPC-608 | (8m; 26.2ft)
| OPC-609 | (1.9m; 6.2ft) |
| OPC-1132 |
| OPC-347 | | |
| HM-152 |
| HM-152T | DTMF type
| HM-148 | Heavy duty |
| SM-25 | | | |
| SP-5 |
| SP-10 |
| SP-22 |
| SP-30 |
| UT-109R | Voice scrambler unit
| UT-110R | Voice scrambler unit |
General
| IC-F5063 | IC-F6063 | |||||||
| Frequency coverage (Varies according to version) | 136-174 MHz | 400–470 MHz 450–520 MHz | |||||||
| Number of channels | 512 ch/128 zones | Channel spacing (Varies according to version) | 12.5/25, 15/30 6.25 (option) kHz | 12.5/25 6.25 (option) kHz | |||||
| Type of emission | 16K0F3E, 11K0F3E, 8K10F1E/D, 4K00F1E/D* (* Digital) | 16K0F3E, 11K0F3E, 11K0F7E/D, 8K10F1E/D, 4K00F1E/D* (* Digital) | |||||||
| Current drain | Tx High | 14A/7A (50/25W) | 14A/7A (45/25W) | Rx | Stand-by | 300 mA | Max. audio | 1.2A | |
| Dimensions (projections not included; W×H×D) | 160×45×150 mm 6 5 ⁄16×125/32×5 29 ⁄32 in | Weight (approx.) | 1.3kg; 2.9lb | ||||||
Transmitter
| IC-F5063 | IC-F6063 | ||||||||||||
| RF output power | 25W | Spurious emissions | 75dB (typ.) | Frequency stability | ±1.0ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 45dB typ. (W) 40dB typ. (N) | |||||
Receiver
| IC-F5063 | IC-F6063 | ||||||||||||
| Sensitivity at 12dB SINAD | 0.25μV (typ. analog), 0.20μV (typ. digital at 5% BER) | Adjacent channel selectivity (W/N) | 85/75dB (typ.) | Spurious response rejection | 90dB (typ.) | Intermodulation rejection | 77dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 4W (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F5063
IC-F6063 | |
| Number of option slots | 2* | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | Available | decoder | Available |
5-Tone | encoder | Available | decoder | Available |
DTMF autodial | Available | |
DTMF decoder | Available** | |
Voice Scrambler | Inversion | Available | Non-rolling | UT-109R | Rolling | UT-110R |
APCO P25 digital | - | |
AES encryption | - | |
DES encryption | - | |
IDAS digital | UT-126H | |
MPT 1327 | - | |
MDC 1200 | Available | |
LTR™ trunking | Available | |
PassPort | - | |
** Possible as a kind of 5-Tone format.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Rain Blowing | 506.4 I* |
Rain Drip | 506.4 III* |
Humidity Induced | 507.4 |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
