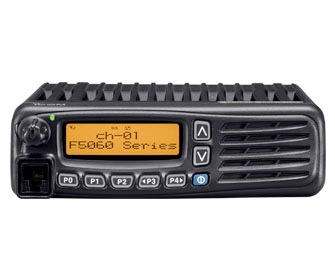

VHF/UHF Mobile Transceiver IC-F5062 IC-F6062
MULTI-MODE, MULTI-FEATURED PROFESSIONAL MOBILE
Designed for public safety, transportation and delivery service users, the IC-F5062 series offers advanced multi-mode operations, improved scanning, flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or BIIS 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
Dot-matrix, multi-function LCD
The IC-F5062 series has a large dot-matrix display to show information with high visibility characters. 4 watts (typ.) front mounted speaker delivers clear and loud audio.
IP54 dust-protection and splash resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5062 series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Mode slave scan
In the normal mode scan, you can select a scanning list independent to the channel setting. In the mode slave setting, the scanning list is automatically selected according to the operating channel. It is convenient when you change operating channels or move to a different operating area, you don’t need to change the scanning setting.
Other features
- The mode slave scan setting automatically selects the scanning list, according to the operating channel
- Nuisance delete
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
- Built-in basic LTR™ trunking capability
- 8 DTMF autodialing memories and ANI function
- D-Sub accessory connector, ignition sensing line
- Future 6.25kHz digital mode capability (See page 3 for details)
and more...
SEPARATION KIT AND CABLE
| RMK-3 | (OPC-609 is required)
| OPC-609 | (1.9m; 6.2ft) | |
| OPC-1132A | (3m; 9.8ft)
| OPC-347 | (7m; 23ft) | |
| HM-152 |
| HM-152T | DTMF type.
| HM-148 | Heavy-duty type |
| SM-25 | | | |
| SP-5 |
| SP-10 |
| SP-22 |
| SP-30 |
| UT-109R | Voice scrambler unit
| UT-110R | Voice scrambler unit
| UT-126H | IDAS digital unit |
General
| IC-F5062 | IC- F6062 | ||||||||||||||||||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400-470 MHz | ||||||||||||||||||||||||||||||||||
| Number of channels | 512 ch/128 zones | Channel spacing (Varies according to version) | 12.5/20/25 kHz | Type of emission | 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/D*(* Digital) | Current drain | Tx High | 7A | Rx | Stand-by | 300mA | Max. audio | 1.2A | Dimensions (projections not included; W×H×D) | 160×45×150 mm | Weight (approx.) | 1.3kg | |||||||||||||||||||
Transmitter
| IC-F5062 | IC- F6062 | ||||||||||||
| RF output power (High) | 25W | Spurious emissions | 0.25μW (≦1GHz) | Frequency stability | ±1.5kHz | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | - | |||||
Receiver
| IC-F5062 | IC- F6062 | ||||||||||||
| Sensitivity at 20dB SINAD (emf) | –4dBμV (typ.) | Adjacent channel selectivity (W/M/N) | 85/83/75dB (typ.) | Spurious response rejection | 90dB (typ.) | Intermodulation rejection | 70dB (typ.) | AF output power (at 10% distortion with a 4Ω load) | 4W (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F5062
IC-F6062 | |
| Number of option slots | 2* | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | Available | decoder | Available |
5-Tone | encoder | Available | decoder | Available |
DTMF autodial | Available | |
DTMF decoder | Available** | |
Voice Scrambler | Inversion | Available | Non-rolling | UT-109R | Rolling | UT-110R |
BllS 1200 | Available | |
MPT 1327 | - | |
LTR™ trunking | Available | |
IDAS digital | UT-126H | |
** Possible as a kind of 5-Tone format.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Rain Blowing | 506.4 I* |
Rain Drip | 506.4 III* |
Humidity Induced | 507.4 |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
