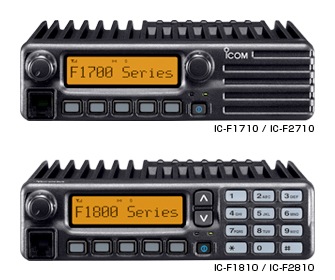

VHF/UHF Mobile Transceiver IC-F1710 IC-F1810 IC-F2710 IC-F2810
VERSATILE, MULTI-FUNCTION MOBILE
Timely information and precise instructions are indispensable for today's public safety services. The IC-F1710 and F1810 series are designed to support these critical expectations with reliable communications and versatile features.
BIIS 1200 : Binary Interchange of Information and Signalling at 1200 bit/second as defined by ETS 300 230.
Detachable front panel*
With the optional remote control kit, RMK-2 and separation cable, the front panel of the IC-F1710 and F1810 series can be detached from the main unit. It allows you flexible installation even in limited installation space.
* Optional RMK-2 and OPC-609 are required.
Dot-matrix, multi-function LCD
The IC-F1710 and F1810 series have a large dot-matrix display to show information with high visibility characters. The display setting is programmable to show one line and 12 characters, or two lines and 24 characters.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone, 5-Tone or BIIS capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel. When a matched tone is received, the various items such as beep sound, bell icon and auto transmit are programmable for each code.
Rugged construction
The IC-F1710 and F1810 series have durable construction resistant to shock and vibration and provides reliable operation under harsh conditions.
Other features
- Ample 256 memory channels and 32 zones
- Built-in audio compander
- Optional Voice Scrambler UT-109/UT-110, and more...
SEPARATION KIT AND CABLE
| RMK-2 | (OPC-609 is required)
| OPC-609 | (1.9m; 6.2ft) | |
| OPC-617 | | | |
| OPC-1132A | (3m; 9.8ft)
| OPC-347 | (7m; 23ft) | |
| HM-152 |
| HM-152T | DTMF type.
| HM-148 | Heavy-duty type |
| SM-25 | | | |
| SP-5 |
| SP-10 |
| SP-22 |
| SP-30 |
| UT-109 | Voice scrambler unit
| UT-110 | Voice scrambler unit |
General
| IC-F1710, IC-F1810 | IC- F2710, IC-F2810 | ||||||||||||||||||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400-470 MHz | ||||||||||||||||||||||||||||||||||
| Number of channels | 256 ch/32 zones | Channel spacing (Varies according to version) | 12.5/20/25 kHz | Type of emission | 16K0F3E,14K0F3E,8K50F3E | Current drain | Tx High | 7A | Rx | Stand-by | 600mA | Max. audio | 1.2A | Dimensions (projections not included; W×H×D) | 175×45×170 mm | Weight (approx.) | 1.5kg | |||||||||||||||||||
Transmitter
| IC-F1710, IC-F1810 | IC- F2710, IC-F2810 | ||||||
| RF output power (High) | 25W | Spurious emissions | 0.25μW (≦1GHz) | Frequency stability | ±0.85kHz | ±1.5kHz | ||
| Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | - | |||||
Receiver
| IC-F1710, IC-F1810 | IC- F2710, IC-F2810 | ||||||||||||
| Sensitivity at 20dB SINAD (emf) | –4dBμV (typ.) | Adjacent channel selectivity (W/M/N) | 80/80/75dB (typ.) | Spurious response rejection | 80dB | Intermodulation rejection | 70dB (typ.) | AF output power (at 10% distortion with a 4Ω load) | 4W (typ.) 22W (typ.)(External audio) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F1710, IC-F1810
IC- F2710, IC-F2810 | |
| Number of option slots | 1 | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | Available | decoder | Available |
5-Tone | encoder | Available | decoder | Available |
DTMF autodial | Available | |
DTMF decoder | Available* | |
Voice Scrambler | Inversion | Available | Non-rolling | UT-109 | Rolling | UT-110 |
BllS 1200 | Available | |
MPT 1327 | - | |
LTR™ trunking | - | |
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage (Altitude) | 500.4 I |
Low Pressure Operation (Altitude) | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Humidity Induced | 507.4 |
Humidity Aggravate | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
