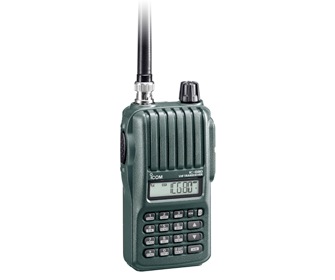

VHF TRANSCEIVER IC-G80
Professional in every sense! Performance, build, audio and operation
5W output power, 136-174MHz full VHF coverage
Professional RF performance, resistance to interference
750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
* Typical value with internal speaker.
IP54 and MIL-STD-810 rugged construction
Large capacity Li-Ion battery pack provides 18.5 hours* of operating time
* Typical operation. 5:5:90 duty cycle with auto power save.
Wide/narrow channel spacing
Integrated VOX function
200 channels
Built-in CTCSS and DTCS encoder/decoder
5 character alphanumeric display
Priority, memory and skip scanning
16 DTMF autodial memories
Repeater lockout and busy channel lockout
Time-out-timer
Power save function and auto power off
BATTERY CASE
| BP-263 | AA(LR6) × 6 cells | | |
| BP-264 | (Ni-MH)
| BP-265 | (Li-Ion) | |
| BC-192 | Regular charger for BP-264 (Ni-MH battery)
| BC-191 | Rapid charger for BP-264 (Ni-MH battery)
| BC-193 | Rapid charger for BP-265 (Li-Ion battery)
| BC-197 | Rapid multicharger for BP-264 or BP-265.*
AC ADAPTERS
| BC-147S* | 12V/200mA
| BC-123S* | 12V/1A
| BC-157S | 12V/6.6A
CHARGER ADAPTERS
| AD-120* | Charger adapter for BP-264.
| AD-121* | Charger adapter for BP-265. | |
POWER SUPPLY CABLES
| CP-23L | Cigarette Lighter Cable
| OPC-515L | DC Power Cable
| OPC-656 | DC Power Cable |
| HM-158L | Compact type speaker-microphone
| HM-159L | Full size durable speaker-microphone | |
| HM-153L | Durable earphone-microphone | | |
| HS-94 | Earhook headset with flexible boom microphone
| HS-95 | Behind-the-head headset with flexible boom microphone
| HS-97 | Throat microphone that fits around your neck and picks up speech vibrations |
| OPC-2004 | (Use with either HS-94, HS-95 or HS-97) | | |
| MB-124 | Alligator type | | |
| FA-B2E | VHF Antenna | |
General
| IC-G80 | ||
| Frequency range | 136MHz–174MHz | ||
| Number of channels | 200 channels | ||
| Channel spacing | 12.5kHz/25kHz | ||
| Type of emission | F2D/F3E | ||
| Current drain | Tx | 1.4A (5W) | Rx | Stand-by | 60mA typ. | Max. audio | 300mA (Internal SP) |
| Dimensions (W×H×D) (Projections are not included) | 58×112×30 mm | ||
| Weight | 140g (Without battery pack) 360g (With BP-264 and antenna) | ||
Transmitter
| IC-G80 |
| RF output power (at 7.2V DC) | 5.0/2.5/0.5W (High/Mid/Low) |
| Spurious emissions | Less than -70dB |
| Frequency stability | ±2.5ppm |
Receiver
| IC-G80 | |
| Sensitivity (at 12dB SINAD) | 0.18μV typ. | |
| Adjacent channel selectivity (W/N) | 72/65dB typ. | |
| Spurious & Image rejection | 80dB typ. | |
| Intermodulation rejection | 72dB typ. | |
| AF output power (at 5% distortion ) | Internal SP (With 16Ω load) | 750mW typ. | External SP (With 8Ω load) | 420mW typ. |
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F |
Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard
Dust & Water | IP54 (Dust-protection and water resistant) |
All stated specifications are subject to change without notice or obligation.
