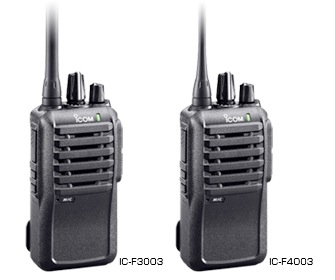

VHF/UHF Handheld Transceiver IC-F3003 IC-F4003
Affordable, high performance radio that offers abundant features
Simple operation for instant communication
The IC-F3003 series is so easy to use there's no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier offers powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments. * Typical with internal speaker
Longer operating time
A new high efficiency FET of the IC-F3003 series reduces consumption current and provides 20 hours* of operating time with the BP-265, 2000mAh battery pack. Even when used with the BP-264, the radio offers 14 hours* of operating time. *Tx:Rx:Standby=5:5:90. Power save function ON.
Weather resistant, dust protection, military rugged
While the radio is a compact unit with a height of only 111mm, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MILSTD- 810 environmental test. In short, the IC-F3003 series is built rugged!
Internal VOX capability for hands-free operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Selective calling, quiet stand-by and more
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Other features
- DTMF autodial
- CTCSS/DTCS encoder/decoder
- BIIS PTT ID transmission
- MDC PTT ID and emergency
- Low battery alert
- 2-step power save
- PC programmable
- Time out timer
- Talk around function
- Lone worker function
- Enhanced emergency
- 3-color LED
- Surveillance function
BATTERY PACKS
| BP-264 | (Ni-MH)
| BP-265 | (Li-Ion) | |
| BP-263 | AA(LR6) | | |
| BC-192 | Regular charger for BP-264 (Ni-MH battery)
| BC-191 | Rapid charger for BP-264 (Ni-MH battery)
| BC-193 | Rapid charger for BP-265 (Li-Ion battery)
| BC-197 | Rapid multicharger for BP-264 or BP-265.*
AC ADAPTERS
| BC-147S* | 12V/200mA
| BC-123S* | 12V/1A
| BC-157S | 12V/6.6A |
CHARGER ADAPTERS
| AD-120* | Charger adapter for BP-264.
| AD-121* | Charger adapter for BP-265. | |
SPEAKER-MICROPHONES
| HM-158L | Compact and durable body.
| HM-159L | Full size durable speaker microphone. | |
| HS-94 | Earhook type with boom microphone
| HS-95 | Behind-the-head type
| HS-97 | Throat microphone type |
| OPC-2004 | | | |
| MB-124 | Alligator type clip. | | |
| CP-23L | Cigarette lighter cable
| OPC-515L | DC Power cable
| OPC-656 | DC Power Cable |
| FA-SC25V | 136-150MHz
| FA-SC55V | 150-174MHz
| FA-SC25U | 400-430MHz
| FA-SC57U | 430-470MHz
| FA-SC72U | 470-520MHz | | |
| FA-SC61VC | 136-174MHz
| FA-SC61US | 380-520MHz | |
| FA-SC56VS | 150-162MHz
| FA-SC57VS | 160-174MHz
| FA-SC73US | 450-490MHz
General
| IC-F3003 | IC-F4003 | |||||||||||||||||||||
| Frequency range (Varies according to version) | 136MHz–174MHz | 350MHz–400MHz 400MHz–470MHz 450MHz–520MHz | |||||||||||||||||||||
| Number of memory channels | 16 channels | Channel spacing (Varies according to version) | 12.5kHz/25kHz | Type of emission | 16K0F3E/11K0F3E | Current drain | Tx | 1.3A | Rx | Stand-by | 75mA | 70mA | Max. audio | 330mA (Internal SP) | |||||||||
| Dimensions (W×H×D) (Projections are not included) | 58×111×31 mm (With BP-264) 58×111×35.5 mm (With BP-265) | Weight | 330g (With BP-264) 270g (With BP-265) | ||||||||||||||||||||
Transmitter
| IC-F3003 | IC-F4003 | |||||||||
| RF output power (at 7.2V DC)) | 5W, 2W, 1W (Hi, L2, L1) | 4W, 2W, 1W (Hi, L2, L1) | |||||||||
| Spurious emissions | 70dB (min.) | Frequency stability | ±2.5ppm | Audio harmonic distortion (W/N) | 1.0%/1.5% (typ.) | FM Hum and Noise (W/N) | 46dB/40dB (typ.) | ||||
Receiver
| IC-F3003 | IC-F4003 | |||||
| Sensitivity at 12dB SINAD | 0.25dBμV (typ.) | Adjacent channel selectivity (W/M/N) | 78dB/70dB (typ.) | 73dB/65dB (typ.) | |||
| Spurious response rejection | 70dB (min.) | Intermodulation rejection | 75dB (typ.) | 74dB (typ.) | |||
| AF output power (at 5% distortion ) | Internal SP (With 12Ω load) | 800mW (typ.) | External SP (With 8Ω load) | 400mW (typ.) | |||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F |
Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard
Dust & Water | IP54 (Dust-protection and water resistant) |
All stated specifications are subject to change without notice or obligation.
