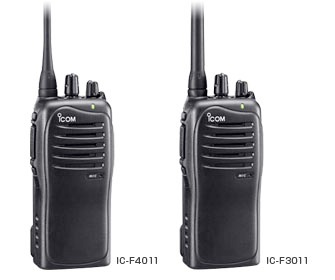

VHF/UHF Handheld Transceiver IC-F3011 IC-F4011
Simple, Rugged & Reliable at an unbelievable price!
Simple operation for instant communication
With only 3 buttons, one volume knob and one 16-position channel knob, the IC-F3011 series does not require special training to use. The large knobs and positive action buttons are easy-to-operate, even while wearing gloves.
Modern design, rugged body
The IC-F3011 series is compact (120mm; 423/32 inch height) and light weight (approximate 300g; 10.6oz with BP-232N and antenna). The aluminum die-cast chassis is the basis for this rugged construction, allowing long-life usage in various environments.
MIL-STD and IP54 rugged construction
The radio is tested to MIL-STD 810 specifications and to the IP54 rating for dust protection and water resistance. The IC-F3011 series is built to take harsh use and keep working.
Lithium-Ion battery standard
The IC-F3011 series comes with a high capacity 2000mAh (typ.) Li-Ion battery pack, BP-232N, as standard. The BP-232N offers up to 16 hours* of operation. * VHF typical operation with Tx:Rx:Stand-by ratio =5:5:90
CTCSS/DTCS tone encoder/decoder
The IC-F3011 series has the built-in CTCSS and DTCS capabilities as standard to access a repeater or to set up your own talk group for quiet stand-by.
Rapid battery charger supplied
The rapid desktop charger, BC-160 and AC adapter BC-145 is supplied with the radio. It charges the BP-232N Li-Ion battery in 3 hours (approx.).
Automatic scanning and priority scan
The power on scan function automatically starts scanning when turning on the radio. The priority scan function scans all programmed channels in sequence, while monitoring the priority channel.
Other features
- Low battery alert with blinking LED and low battery beep
- Wide frequency coverage (136–174, 400–470 and 450–512MHz)
- Wide/narrow channel spacing (25, 12.5kHz) programmable
- PC programmable
- 3-color LED (Red, Green, Orange)
- Talk around function
- Time out timer
- Optional VOX headset
- 2-step power save
BATTERY PACKS
| BP-230N | (Li-Ion)
| BP-232N | (Li-Ion) | |
| BP-240 | AAA(LR03)×6 cells | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-160 | Rapid charger
| BC-171 | Regular charger
| AD-106 | (Use with BC-119N/BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-158L |
| HM-159L |
| HM-153L |
| HM-166L |
| HS-94 | Earhook type with boom microphone
| HS-95 | Behind-the-head type
| HS-97 | Throat microphone type |
| VS-1L | | | |
| SP-13 | | | |
| MB-93 | Swivel type
| MB-94 | Alligator type | |
| MB-96N | Swivel type.
| MB-96F | Fixed type | |
| CP-23L | Cigarette lighter cable
| OPC-515L | Power supply cable
| OPC-656 | 12–20V DC CABLE |
| FA-SC25V | 136-150MHz
| FA-SC55V | 150-174MHz
| FA-SC25U | 400-430MHz
| FA-SC57U | 430-470MHz
| FA-SC72U | 470-520MHz | | |
| FA-SC61VC | 136-174MHz
| FA-SC61UC | 380-520MHz | |
| FA-SC56VS | 150-162MHz
| FA-SC57VS | 160-174MHz
| FA-SC73US | 450-490MHz |
General
| IC-F3011 | IC-F4011 | |||||||
| Frequency coverage (Varies according to version) | 136–174MHz | 400–470MHz 450–512MHz | |||||||
| Number of channels | 16 channels | Channel spacing (Varies according to version) | 15/30kHz | 12.5/25kHz | |||||
| Type of emission | 16K0F3E, 11K0F3E | Current drain | Tx High | 1.5A | 1.6A | Rx | Stand-by | 70mA | Max. audio | 300mA |
| Dimensions (projections not included; W×H×D) | 53×120×38 mm 2 3 ⁄32× 4 23/32×1 1 ⁄2 in | Weight (approx.) | 300g; 10.6oz (with BP-232N) | ||||||
Transmitter
| IC-F3011 | IC-F4011 | |||||||||
| RF output power | 5W | 4W | |||||||||
| Spurious emissions | 80dBc (typ.) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 46dB typ. (W) 40dB typ. (N) | ||||
Receiver
| IC-F3011 | IC-F4011 | ||||||||||||
| Sensitivity at 12dB SINAD | 0.25μV (typ.) | Adjacent channel selectivity (W/N) | 75/65dB (typ.) | Spurious response rejection | 70dB (min.) | Intermodulation rejection | 74dB(typ.) | AF output power (at 5% distortion with an 8Ω load) | 500mW (typ.) | |||||
FUNCTION COMPARISON
| IC-F3011, IC-F4011 | |
| Number of option slots | - | |
| CTCSS/ DTCS | encoder | Available | decoder | Available |
| 2-Tone | encoder | - | decoder | - |
| 5-Tone | encoder | - | decoder | - |
| DTMF autodial | - | |
| DTMF decoder | - | |
| Voice Scrambler | Inversion | - | Non-rolling | - | Rolling | - |
| APCO P25 digital | - | |
| AES encryption | - | |
| DES encryption | - | |
| 6.25kHz digital | - | |
| MPT 1327 | - | |
| MDC 1200 | - | |
| LTR™ trunking | - | |
| PassPort | - | |
| Man Down function | - | |
| Intrinsically safe | - | |
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard | Dust & Water | IP54 (Dust-protection and water resistance) | |
All stated specifications are subject to change without notice or obligation.
