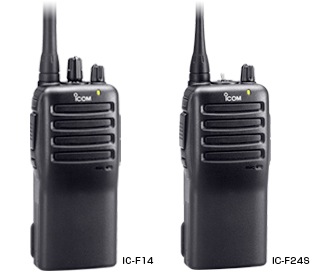

VHF/UHF Handheld Transceiver IC-F14/S IC-F24/S
BUILT TO LAST, BUILT TO WORK!
The IC-F14/S series is designed to provide simple operation for everyone and is a powerful and reliable tool for your daily business. Its very durable construction is resistant to shock and vibration. The IC-F14/S series will easily exceed your expectations.
Tough and reliable construction
The IC-F14/S series is built around an aluminum die-cast chassis and covered with a tough polycarbonate casing. This radio is built to last. Its dual slide rail securely locks the battery to the radio. The belt clip is clamped between the radio and the battery, making it nearly impossible to knock loose.
Simple operation
Having only 3 buttons, one volume and one channel knob, the IC-F14/S series does not require special training to use. Positive button action for sure operation even when wearing gloves allows you to get down to the business of communicating without fuss.
Optional board
The IC-F14/S series has an expansion socket for adding an optional board. Voice scrambler, man down and DTMF decoder features are available, depending on the installed board.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.
Other features
- Wide frequency coverage in one version
- Optional voice scrambler, UT-109 and UT-110
- Optional DTMF decoder, UT-108
- Optional man down unit, UT-124
- Multiple 2-Tone, Multiple 5-Tone
- Lithium-Ion battery standard
- LED low battery alert
- TOT function and lock out penalty timer
- 2 step power saver
- Normal and priority scan
- 500mW loud and clear audio
- Optional VOX headset for hands free operation
- Embedded ESN (Electronic serial number)
- Wide/narrow (25/12.5kHz) channel spacing capability,
and more...
BATTERY PACKS
| BP-230N | (Li-Ion)
| BP-232N | (Li-Ion) | |
| BP-240 | AAA(LR03)×6 cells | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-160 | Rapid charger
| BC-171 | Regular charger
| AD-106 | (Use with BC-119N/BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-158L |
| HM-159L |
| HM-153L |
| HM-166L |
| HS-94 | Earhook type with boom microphone
| HS-95 | Behind-the-head type
| HS-97 | Throat microphone type |
| VS-1L | | | |
| SP-13 | | | |
| MB-93 | Swivel type
| MB-94 | Alligator type | |
| MB-96N | Swivel type. MB-86 and MB-93 swivel joints supplied.
| MB-96F | Fixed type | |
| OPC-656 | 12–20V DC CABLE | | |
| FA-SC25V | 136-150MHz
| FA-SC55V | 150-174MHz
| FA-SC25U | 400-430MHz
| FA-SC57U | 430-470MHz
| FA-SC72U | 470-520MHz | | |
| FA-SC61VC | 136-174MHz
| FA-SC61US | 380-520MHz | |
| FA-SC56VS | 150-162MHz
| FA-SC57VS | 160-174MHz
| FA-SC73US | 450-490MHz |
| UT-108 | DTMF Decoder
| UT-109 | Voice scrambler unit
| UT-110 | Voice scrambler unit
| UT-124 | Man down unit
General
| IC-F14/S | IC-F24/S | |||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400-470 MHz 450-512 MHz(USA) 450-520 MHz (GEN) | |||||||
| Number of channels | 16 (Rotary type), 4 (Max.; simple type) | Channel spacing (Varies according to version) | 12.5/25, 15/30 kHz | 12.5/25 kHz | |||||
| Type of emission | 16K0F3E, 11K0F3E | Current drain | Tx High | 1.5A | 1.6A | Rx | Stand-by | 70mA | Max. audio | 300mA |
| Dimensions (projections not included; W×H×D) | 53×120×42.4 mm 2 3 ⁄32× 4 23/32×1 7 ⁄16 in | Weight (approx.) | 300g; 10.6oz (with BP-232N) | ||||||
Transmitter
| IC-F14/S | IC-F24/S | |||||||||
| RF output power | 5W | 4W | |||||||||
| Spurious emissions | 80dB (typ.) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 46dB typ. (W) 40dB typ. (N) | ||||
Receiver
| IC-F14/S | IC-F24/S | ||||||||||||
| Sensitivity at 12dB SINAD | 0.25μV (typ.) | Adjacent channel selectivity (W/N) | 70/65dB (typ.) | Spurious response rejection | 70dB (min.) | Intermodulation rejection | 74dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 500mW (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F14/S, 24/S | |
| Number of option slots | 1 | |
CTCSS/ DTCS | encoder | Available | decoder | Available |
2-Tone | encoder | Available | decoder | Available |
5-Tone | encoder | Available | decoder | Available |
DTMF autodial | Available | |
DTMF decoder | UT-108 | |
Voice Scrambler | Inversion | - | Non-rolling | UT-109 | Rolling | UT-110 |
APCO P25 digital | - | |
AES encryption | - | |
DES encryption | - | |
6.25kHz digital | - | |
MPT 1327 | - | |
MDC 1200 | Available (Limited functions) | |
LTR™ trunking | - | |
PassPort | - | |
Man Down function | UT-124 | |
Intrinsically safe | - | |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
All stated specifications are subject to change without notice or obligation.
