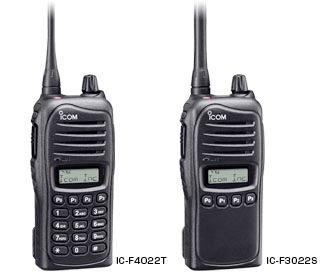

VHF/UHF Handheld Transceiver IC-F3022T/S IC-F4022T/S
ECONOMICAL STANDARD MODEL
The IC-F3022 series is an economical standard model with durable construction and simple user-friendly operation. Icom’s technology provides you with the reliable performance and communication quality you expect.
Button control memory channel
The IC-F3022 series has 128 memory channels with 8 zones. Memory channel selection can be made easily with up/down buttons laid out below the PTT button. An enlarged backlit LCD increases user-friendly operation with 8-character channel comment.
Wide range coverage
The IC-F3022 series covers a wide frequency range with 136–174MHz or 400–470MHz in one version. Wide, middle and narrow* channel bandwidth is programmable to each channel.
*Programmable 25/12.5kHz or 20/12.5kHz channel spacing.
Supports multiple, flexible selective call
CTCSS, DTCS, 2-Tone, 5-Tone encoder/decoder and DTMF encoder are built-in. The optional UT-108R allows DTMF decode with ANI functions. In addition, the IC-F3022 series can encode up to 10 2-Tone codes or 32 5-Tone and decode up to 10 2-Tone or 8 5-Tone on a single memory channel.
Other features
- Optional voice scrambler, UT-109R and UT-110R
- Optional man down unit, UT-124R
- Surveillance function temporarily turns off the LED backlight and beep sound
- Large capacity Lithium-Ion battery pack option
- Dust-protection and splash resistance equivalent to IP54
- Compact and lightweight body
BATTERY PACKS
BP-230N
| (Li-Ion)
7.4V/950mAh (min.),
980mAh (typ.)
BP-232N
| (Li-Ion)
7.4V/1900mAh (min.),
2000mAh (typ.)
|
|
BATTERY CASES
CHARGERS
BC-119N
| Rapid charger
(AD-106 is required)
BC-121N
| Rapid multicharger
(AD-106 is required)
CHARGER ADAPTER
AD-106
| (Use with BC-119N/BC-121N)
|
|
|
AC ADAPTERS
BC-145S
| 16V/1A
(Use with BC-160 or BC-119N)
BC-147S
| 12V/200mA
(Use with BC-171)
BC-157S
| 12V/6.6A
(Use with BC-121N)
|
SPEAKER-MICROPHONES
HEADSETS
HS-94*
| Earhook type with boom microphone
(Use with VS-1L)
HS-95*
| Behind-the-head type
(Use with VS-1L)
HS-97*
| Throat microphone type
(Use with VS-1L)
|
VOX/PTT CASE
EARPHONE
BELT CLIPS
LEATHER BELT HANGERS
MB-96N
| Swivel type. MB-86 and MB-93 swivel joints supplied.
DC POWER CABLES
OPC-656
| 12–20V DC CABLE
(Use with BC-121N)
|
|
|
ANTENNA
CUT ANTENNAS
STUBBY ANTENNAS
INTERNAL UNITS
UT-109R
| Voice scrambler unit
(Non-rolling type)
UT-110R
| Voice scrambler unit
(Rolling type)
*Not waterproof.
General
| IC-F3022T/S
| IC-F4022T/S
|
Frequency coverage
(Varies according to version)
| 136-174 MHz
| 400–470 MHz
|
Number of channels
| 128 ch/8 zones
| Channel spacing
(Varies according to version)
| 12.5, 20 or 25 kHz
| Type of emission
| 16K0F3E, 14K0F3E,
8K50F3E
| Current drain
| Tx High
| 1.5A
| Rx
| Stand-by
| 75mA
| Max. audio
| 250mA
| Dimensions
(projections not included; W×H×D)
| 53×120×36.9 mm
| Weight (approx.)
| 260g (with BP-232N)
|
Transmitter
| IC-F3022T/S
| IC-F4022T/S
| RF output power
| 5W
| 4W
|
Spurious emissions
| 0.25μW (≦1GHz)
| Frequency stability
| ±2.5ppm
| Audio harmonic distortion
| 3% typical
40% deviation
| FM Hum and Noise
| -
|
Receiver
| IC-F3022T/S
| IC-F4022T/S
| Sensitivity at 20dB SINAD (emf)
| –4dBμV (typ.)
| Adjacent channel selectivity (W/M/N)
| 75/75/65dB (typ.)
| 75/73/65dB (typ.)
|
Spurious response rejection
| 70dB
| Intermodulation rejection
| 67dB
| AF output power
(at 5% distortion with an 8Ω load)
| 500mW (typ.)
|
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F3022T/S IC-F4022T/S
| Number of option slots
| 1
|
CTCSS/ DTCS
| encoder
| Available
|
decoder
| Available
| 2-Tone
| encoder
| Available
|
decoder
| Available
| 5-Tone
| encoder
| Available
|
decoder
| Available
| DTMF autodial
| Available
|
DTMF decoder
| UT-108R
|
Voice Scrambler
| Inversion
| -
|
Non-rolling
| UT-109R
| Rolling
| UT-110R
| BllS 1200
| -
|
MPT 1327
| -
|
LTR™ trunking
| -
|
Man Down function
| UT-124R
|
Intrinsically safe
| -
|
All stated specifications are subject to change without notice or obligation.
