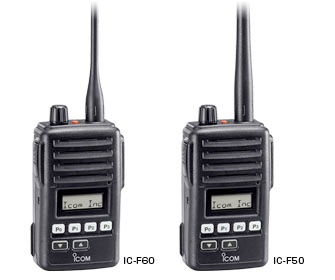

VHF/UHF Handheld Transceiver IC-F50 IC-F60
SUPERIOR WATERPROOF PROTECTION
Firefighters, police, security and public utilities. Each profession has its own unique challenges, but all have one thing in common: the need for reliable communications. The IC-F50 series offers a compact waterproof package that is easy to use. This radio keeps you in contact in nearly any environment.
IPX7 waterproof protection
The gasket sealed waterproof housing provides superior waterproof protection, equivalent to IPX7*.
* 1m depth for 30 minutes.
Built-in multiple tone signalings
Use the built-in CTCSS, DTCS, 2-Tone and 5-Tone capability to set up your own talk groups or control a repeater.
Wide frequency range coverage
The IC-F50 covers 136-174MHz and the IC-F60 covers 400-470MHz or 450-520 (512) MHz, depending on version. Wide, and narrow channel spacing (25/12.5kHz) is programmable to each channel.
Compact body
56(W)×97(H)×36.4(D) mm compact body with durable, dependable construction, has been tested to military standard (MIL STD) specifications. The compact design fits comfortably in your palm, and is easy to carry around.
Li-Ion battery pack
The large capacity 1700mAh Lithium-Ion battery pack, BP-227, provides a practical 10 hours* of operating time.
* Typical operation Tx:Rx: Stand-by=5:5:90
FM intrinsically safe versions
Versions of the IC-F50/F60 are available that conform to the intrinsically safe rating of the FM Global. Intrinsically safe Class Ι, ΙΙ and ΙΙΙ, Division 1, Groups C, D, E, F, and G ; Nonincendive Class Ι, Division 2, Groups A, B, C and D hazardous locations when used with Icom BP-227FM battery pack “Max. Temp. T3C at 40°C”Approved accessories: Speaker-microphone, HM-138.
Other features
- Built-in UT-110 equivalent voice scrambler, depending on the version
- Inversion type voice scrambler is built-in to all versions
- Optional waterproof speaker-microphone, HM-138
- MDC 1200 system is programmable depending on version
- Flash CPU versions for customization to specific needs
BATTERY PACK
| BP-227 | (Li-Ion) | | |
| BP-226 | AA(LR6)×5 cells Equivalent to IPX4 water resistance. | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-152 | Regular charger
BC-190| Rapid charger |
| AD-100 | (Use with BC-119N/BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-138 | Equivalent to IPX7 waterproof.
| HM-168 | IPX7
| HM-169 | IP57
| HM-170GP | With GPS receiver IP57
| MB-86 | Swivel type
| MB-98 | Alligator type | |
| MB-96N | Swivel type. MB-86 and MB-93 swivel joints supplied.
| MB-96F | Fixed type | |
| OPC-656 | 12–20V DC CABLE | | |
| FA-S24V | 136-150MHz
| FA-S59V | 150-174MHz
| FA-S27U | 400-470MHz
| FA-S56U | 450-520MHz
| FA-S74U | 490-520MHz | | |
| FA-S62VS | 150-162MHz
| FA-S63VS | 160-174MHz
| FA-S57US | 450-490MHz |
GENERAL
| IC-F50 | IC-F60 | ||||||||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400–470 MHz 450–512 MHz (USA) 450–520 MHz (GEN) | ||||||||||||||||||||||||
| Number of channels | 128 ch/8 zones | Channel spacing (Varies according to version) | 12.5/25, 15/30 kHz | 12.5/25 kHz | ||||||||||||||||||||||
| Type of emission | 16K0F3E, 11K0F3E | Current drain | Tx High | 1.5A | Rx | Stand-by | 85mA | Max. audio | 300mA | Dimensions (projections not included; W×H×D) | 56×97×36.4 mm 2 7/32× 3 13/16×1 7/16 in | Weight (approx.) | 280g; 9.9oz (with BP-227) | |||||||||||||
TRANSMITTER
| IC-F50 | IC-F60 | |||||||||
| RF output power | 5W | 4W | |||||||||
| Spurious emissions | 70dB (min.) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | 46dB typ. (W) 40dB typ. (N) | ||||
RECEIVER
| IC-F50 | IC-F60 | ||||||||||||
| Sensitivity at 12dB SINAD | 0.25μV (typ.) | Adjacent channel selectivity (W/N) | 70/65dB (typ.) | Spurious response rejection | 70dB (min.) | Intermodulation rejection | 74dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 500mW (typ.) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F50 IC-F60 | |
| Number of option slots | - | |
| CTCSS/ DTCS | encoder | Available | decoder | Available |
| 2-Tone | encoder | Available | decoder | Available |
| 5-Tone | encoder | Available | decoder | Available |
| DTMF autodial | Available | |
| DTMF decoder | - | |
| Voice Scrambler | Inversion | Available | Non-rolling | Available* | Rolling | Available* |
| APCO P25 digital | - | |
| AES encryption | - | |
| DES encryption | - | |
| 6.25kHz digital | - | |
| MPT 1327 | - | |
| MDC 1200 | Available* | |
| LTR™ trunking | - | |
| PassPort | - | |
| Man Down function | - | |
| Intrinsically safe | Available* | |
* Depending on version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
All stated specifications are subject to change without notice or obligation.
