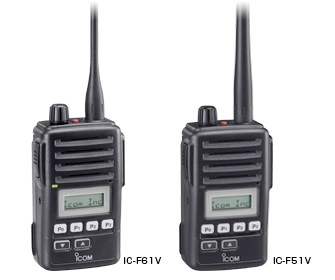

VHF/UHF Handheld Transceiver IC-F51V IC-F61V
NEVER MISS IMPORTANT CALLS
The IC-F51V series offers loud 700mW (typ.) audio, vibration alert and voice recorder functions that let you catch every call. Furthermore, the IC-F50V offers a compact dust and waterproof package that provides reliable communications, and is easy to use in nearly any environment.
Vibration alert function
When a pre-programmed 2-tone/5-tone code or call from a specific group user (BIIS mode only) is received, the radio vibrates powerfully enough to be felt through heavy clothing.
8 minute voice recorder
When a pre-programmed 2-tone/5-tone code or a call from a specific group user (BIIS mode only) is received, the voice recorder automatically starts recording the incoming message. You will not miss an important call even when you are temporarily away from the radio.
700mW (typical) audio output with internal speaker
The IC-F51V series delivers a loud 700mW audio output with the built-in BTL amp. The built-in audio compander provides clear, low noise communications.
IP67, dust-tight and waterproof protection
The IC-F51V series can withstand submersion in 1m depth of water for up to 30 minutes and has dust-tight construction that prevents the ingress of dust.
Other features
- 56(W)×97(H)×36.4(D) mm compact body
- MDC 1200 system programmable
- Inversion type voice scrambler is built-in*1
- Optional waterproof speaker-microphone, HM-168
- Large capacity Lithium-Ion battery pack, BP-227
- Built-in CTCSS, DTCS, 2-Tone and 5-Tone capability
- Mode-dependent scan
- Nuisance delete function
- BTL only version (no vibration alert and no voice recorder) and BTL/Vibration alert version (no voice recorder) available*2
- The new BC-190 charger allows you to catch calls even during the night while charging the batery with the radio power on.
*2 Not available in some countries.
BATTERY PACK
| BP-227 | (Li-Ion) | |
| BP-226 | AA(LR6)×5 cells Equivalent to IPX4 water resistance. | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-152 | Regular charger
| BC-190 | Rapid charger
| AD-100 | (Use with BC-119N or BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-138 | Equivalent to IPX7 waterproof.
| HM-168 | IPX7
| HM-169 | IP57
| HM-170GP | With GPS receiver IP57
| MB-86 | Swivel type
| MB-98 | Alligator type | |
| MB-96N | Swivel type. MB-86 and MB-93 swivel joints supplied.
| MB-96F | Fixed type | |
| CP-17L | | | |
| OPC-515L |
| OPC-656 | 12–20V DC CABLE | |
| OPC-966 | PC to transceiver
| OPC-966U | PC to transceiver | |
| FA-S24V | 136-150MHz
| FA-S59V | 150-174MHz
| FA-S27U | 400-470MHz
| FA-S56U | 450-520MHz
| FA-S62VS | 150-162MHz
| FA-S63VS | 160-174MHz
| FA-S57US | 450-490MHz |
GENERAL
| IC-F51V | IC-F61V | |||||||||||||||||||
| Frequency coverage (Varies according to version) | 136–174 MHz | 400–470 MHz | |||||||||||||||||||
| Number of channels | 128 ch/8 zones | Channel spacing (Varies according to version) | 12.5/20/25 kHz | Type of emission | 16K0F3E, 14K0F3E, 11K0F3E | 16K0F3E, 14K0F3E 8K50F3E | |||||||||||||||
| Current drain | Tx High | 5W | 1.8A | Rx | Stand-by | 85mA | Max. audio | 500mA (Internal speaker) | Dimensions (projections not included; W×H×D) | 56×97×36.4 mm | Weight (approx.) | 280g (with BP-227) | 284g (with BP-227) | ||||||||
| IC-F51V | IC-F61V | |||||||||
| RF output power | 5W | 4W | |||||||||
Spurious emissions | 0.25μW (≦1GHz) | Frequency stability | ±2.5ppm | Audio harmonic distortion | 3% typical 40% deviation | FM Hum and Noise | - | ||||
RECEIVER
| IC-F51V | IC-F61V | ||||||||||||
| Sensitivity at 20dB SINAD (emf) | –4dBμV (typ.) | Adjacent channel selectivity (W/M/N) | 75/75/65dB (typ.) | Spurious response rejection | 70dB (min.) | Intermodulation rejection | 67dB (typ.) | AF output power (at 5% distortion with an 8Ω load) | 700mW (typ.) (Internal speaker) | |||||
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| IC-F51V IC-F61V | |
| Number of option slots | - | |
| CTCSS/ DTCS | encoder | Available | decoder | Available |
| 2-Tone | encoder | Available | decoder | Available |
| 5-Tone | encoder | Available | decoder | Available |
| DTMF autodial | Available | |
| DTMF decoder | - | |
| Voice Scrambler | Inversion | Available | Non-rolling | - | Rolling | - |
| BllS 1200 | Available | |
| MPT 1327 | - | |
| LTR™ trunking | - | |
| Man Down function | - | |
| Intrinsically safe | - | |
| Vibration alert | Available* | |
| Voice recorder | Available* | |
* Depending on version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage (Altitude) | 500.4 I |
Low Pressure Operation (Altitude) | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard
Dust and Water | IP67(Dust-tight and waterproof protection) |
All stated specifications are subject to change without notice or obligation.
