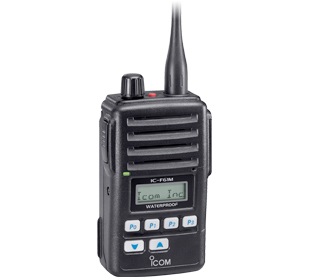

UHF ONBOARD TRANSCEIVER IC-F61M
Compact and Waterproof Maritime Onboard Radio
Conforms to Maritime UHF onboard communication requirements
The IC-F61M is especially developed for onboard communication and is pre-programmed with 9 UHF onboard channels*. Icom has also matched this radio's electrical specifications with the strict requirements of EN 300 720-2.* 25kHz channel.
IP67, dust-tight and water-proof construction
The IC-F61M has outstanding protection against dust and water which is equivalent to IP67. The IC-F61M can withstand submersion in 1m depth of water for up to 30 minutes and has dust-tight construction that prevents the ingress of dust.Compact body
The IC-F61M's compact dimensions of 56 (W) × 97 (H) × 36.4 (D) mm allow the IC-F61M to fit comfortably in your palm or shirt pocket.
Lithium-Ion battery pack standard
With the supplied 1700mAh Lithium-Ion battery pack, BP-227, the IC-F61M provides stable output power and a practical 9–10 hours* of operating time.
* Typical operation; Tx:Rx:Stand-by duty cycle=5:5:90
Built-in signalings
Without installing an optional logic board, the IC-F61M has 5-Tone, CTCSS, DTCS signaling capabilities* for group communication or selective calling.
* Ask your dealer for programming these signalings.
700mW audio output power
The IC-F61M uses a BTL (bridge-tied load) amplifier that doubles the audio output. As a result, it delivers 700mW of loud audio*.
* Internal speaker only.
Vibration alert function
When a pre-programmed 5-Tone signal is received, the vibration alert function alerts you by vibrating the radio. The vibration patterns are also programmable (4 patterns × one time/repeat).
Max. 8 minute voice recorder
The built-in the voice recorder records incoming calls up to a maximum of 8 minutes (Or up to 48 calls of 10 sec. recording time). When a pre-programmed 5-Tone signal is received, the voice recorder automatically starts recording the message.
Other features
- 2-step low battery alert
- Priority scan and dual priority scan
- Mode dependent scan
- Lone worker function
- Optional waterproof speaker microphone, HM-169 (IP57)
- Built-in audio compander
- Optional VOX headset available
- BTL only version (no vibration alert and no voice recorder) and BTL/Vibration alert version (no voice recorder) available*
BATTERY PACK
| BP-227 | (Li-Ion) | |
| BP-226 | AA(LR6)×5 cells Equivalent to IPX4 water resistance. | | |
| BC-119N | Rapid charger
| BC-121N | Rapid multicharger
| BC-152 | Regular charger
| BC-190 | Rapid charger
| AD-100 | (Use with BC-119N or BC-121N) | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/6.6A |
| HM-138 | Equivalent to IPX7 waterproof.
| HM-168 | IPX7
| HM-169 | IP57 |
| HS-94 | (Use with VS-1SC)
| HS-95 | (Use with VS-1SC)
| HS-97 | (Use with VS-1SC) |
| VS-1SC | | | |
| MB-86 | Swivel type
| MB-98 | Alligator type | |
| MB-96N | Swivel type
| MB-96F | Fixed type | |
| CP-17L | | | |
| OPC-515L |
| OPC-656 | 12–20V DC CABLE | |
| FA-S27U | 400-470MHz | | |
| FA-S57US | 450-490MHz |
| IC-F61M | ||
| Frequency range | 457.525–467.575MHz | ||
Number of operating channels | 9 UHF onboard channels (25kHz channel) | ||
Channel spacing | 25kHz | ||
Current drain | Tx | 2W ERP output | 1.0A | 0.2W ERP output | 0.4A | Rx | AF Max. | 500mA (Internal SP) | Stand-by | 85mA |
Operating temp. range | –20°C to +55°C | ||
Dimensions | 56×97×36.4 mm | ||
Weight (approx.) | 284g (with BP-227) | ||
| IC-F61M |
| Output power | 2W ERP/0.2W ERP |
Spurious emissions | 0.25μW |
Adjacent channel power | 70dB |
RECEIVER
| IC-F61M | |
| Sensitivity (at 20dB SINAD) | –4dBμ typ. emf | |
Adjacent Ch. selectivity | 73dB typ. | |
Spurious response | 70dB | |
Intermodulation rejection | 70dB typ. | |
Audio output power | Internal speaker | 0.7W typ. | External speaker | 0.5W typ. |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard
Dust and Water | IP67(Dust-tight and waterproof protection) |
All stated specifications are subject to change without notice or obligation.
