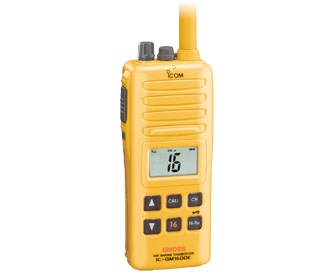

SURVIVAL CRAFT 2-WAY RADIO IC-GM1600E

Pasted GraphicPasted Graphic 1

GMDSS portable for survival craft.
Meets strict environmental requirements for GMDSS
The IC-GM1600E meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600E retains 1m depth waterproof construction as specified by IMO resolution A.809(19) and other related regulations.
Superior low temperature characteristic Lithium battery pack
For survival craft use, the optional BP-234 (non-rechargeable) 3300mAh lithium battery pack provides more than 8 hours* of operating time even at –20°C.
* Tx:Rx:Stand-by=6:6:48.
Large keypad with positive button action
Large buttons and knobs provide tactile feedback for positive operation.
Meets MED 96/98/EC, “Wheel mark” requirements
Wide viewing angle LCD display
A wide viewing angle, high intensity LCD offers extra clear, easy to read characters. The bright LED indicator on the top of panel shows the operating condition clearly.
Easy to operate even for unskilled operators
Operation instructions are printed on the rear panel. All operations can be made with one hand.
Other features
  • One touch access to Channel 16 and call channel
  • Highly visible yellow colored body
  • Optional VOX headset for on-board use

BATTERY PACKS
BP-234
9.0V/3300mAh
(Lithium: nonrechargeable)
(For survival craft)
BP-234
BP-252
(Li-Ion)
7.4V/950mAh (min), 980mAh (typ.).
BP-252


DESKTOP CHARGER
BC-173
Regular charger
(On-board use only)
BC-173



AC ADAPTER
BC-147S
*1
12V/200mA
(Use with BC-158, on-board use only)
BC-147S


*1 BC-147SE for 230V AC. SA for 120V AC. SV for 240V AC.
BELT CLIP
MB-103Y
MB-103Y
*1
*1



IC-GM1600E
Frequency range
Tx/Rx

156.300–156.875MHz

Dimensions (W×H×D)
(Projections not included)

65×145×44 mm

Weight (approx.)

385g (With BP-234)

Current drain

Transmit (High)

1.0A (2W output)

Max. audio

200mA

Sensitivity (at 12dB SINAD)

–2dBμ typ.

Intermodulation rejection

68dB

Audio output power (10% dist./ 8Ω load)

200mW

RF output power

2/1W

Waterproof protection

IMO A.809(19)

Waterproof speaker-microphone

HM-125

VOX headset

HS-94/HS-95/HS-97+OPC-1392

Operating time (approx.)*2

Specified as IMO A.809(19)

Tag scan

–

Favorite channel

–

AquaQuake draining function

–

CTCSS/DTCS with PMR channel

–

Voice scrambler

–

Intrinsically safe

–

*1 On-board use only.
*2 Typical operation, Tx:Rx:Stand-by=5:5:90

All stated specifications are subject to change without notice or obligation.
