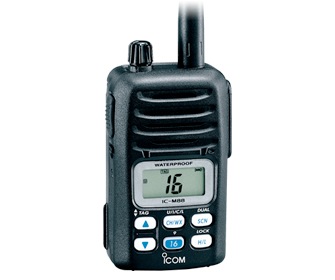

VHF MARINE TRANSCEIVER IC-M88
Compact size for commercial or recreational use
Tough and waterproof
The IC-M88 is built tough to withstand hazardous environments. Even if it is dropped into water, its waterproof construction* will protect it from harm.
* Equivalent to IPX7. (1m depth/30min.)
Simple operation
The volume/power knob combines with 6 clearly labeled front panel buttons to maximize simplicity of operation. A large, clear LCD with backlighting and backlit buttons make night time operation easy.
Li-Ion battery for long battery life
With the standard battery pack, the IC-M88 provides up to 15 hours of operating time.* Also, no worries about 'memory effect' of the battery with Li-Ion technology.
* Tx:Rx:Stand-by= 5:5:90 with BP-227.
Intrinsically safe versions
Versions are available that conform to the intrinsically safe rating of the FM Global. See the specification pages for the details.
22 programmable channels
The IC-M88 has 22 programmable channels reserved for land use (146–174MHz).* Wide/narrow channel spacing is programmable for each channel, and CTCSS and DTCS signaling is built-in.
* Appropriate license will be required.
Other features
- Instant access to Ch.16 and Ch.9
- Simple add/delete TAG scanning
- Monitor button opens squelch
- Auto power save
- Key lock function
- 4-step battery indicator
- Auto WX alert function (U.S.A. version only)
Approved intrinsically safe classifications for the IC-M88 intrinsically safe version.
Intrinsically safe : Class I, II, III, Division 1, Groups C, D, E, F, G
Non-incendive : Class I, Division 2, Groups A, B, C, D
Hazardous locations when used with Icom BP-227FM battery pack. "Max. Temp. T3C at 40°C". The HM-138 is an approved accessory for use with Intrinsically Safe versions.BATTERY CASE
| BP-226 | AA(LR6)×5 cells Water resistance, equivalent to IPX4 | | |
| BP-227 | (Li-Ion)
| BP-227FM | (Li-Ion) | |
| BC-119N | Rapid charger
| BC-152 | Regular charger | |
| BC-121N | Rapid charger | | |
| BC-145S | 16V/1A
| BC-147S | 12V/200mA
| BC-157S | 12V/7A |
| AD-100 | (Use with BC-119N/BC-121N) | | |
| CP-17L | (Use with BC-119N/BC-152) | | |
| OPC-515L | (Use with BC-119N/BC-152)
| OPC-656 | (Use with BC-121N) | |
| HM-138 | Submersible, IPX7
| HM-168 | Waterproof, IPX7 | |
| MB-86 |
| MB-98 | | |
| MB-96N | MB-86 type swivel joint supplied.
| MB-96F | Fixed type | |
| UT-112 capability | Total of 32 voice scramble codes available | | |
| FA-S59V | |
| IC-M88 | |
| Frequency range | Tx | 156.025–157.425MHz | Rx | 156.050–163.275MHz | LMR; Tx/Rx | 146–174MHz |
Dimensions (W×H×D) | 62×97×39 mm | |
Weight (approx.) | 280g; 9.9oz (With BP-227) | |
Current drain | Transmit (High) | 1.6A typical | Max. audio | 200mA typical | Power save | 20mA typical |
Sensitivity (at 12dB SINAD) | 0.25μV typical | |
Intermodulation rejection | 70dB typical | |
Audio output power (10% dist./ 8Ω load) | 350mW typical | |
RF output power | 5/3/1W | |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | IC-M88 |
| Low Pressure Storage (Altitude) | Available |
Low Pressure Operation (Altitude) | Available |
High Temp. Storage | Available |
High Temp. Operation | Available |
Low Temp. Storage | Available |
Low Temp. Operation | Available |
Temp. Shock | Available |
Solar Radiation | Available |
Rain Blowing | Available |
Rain Drip | Available |
Humidity Induced | Available |
Humidity Aggravate | Available |
Salt Fog | Available |
Dust Blowing | Available |
Vibration | Available |
Shock Functional | Available |
Shock Transit Drop | Available |
All stated specifications are subject to change without notice or obligation.
