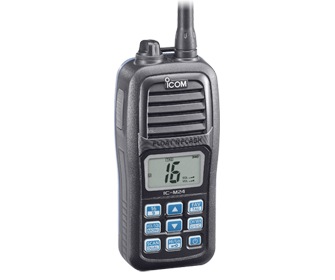

VHF MARINE TRANSCEIVER IC-M24
FLOAT'N FLASH
Icom pioneered the floating VHF marine radio, and others followed. Setting a new trend yet again, the IC-M24 floats and lets you know where it is with the flashing feature. The radio flashes in the water, even when the power is off! It is smaller and lighter than any other buoyant marine handheld too.
Float'n flash*
With its innovative flashing red LED light, an overboard IC-M24 is easy to find, day or night. The light flashes even if the radio is turned off.
* US patent pending.
Smallest and lightest in the world
As a floating VHF marine transceiver, the IC-M24 has the smallest and lightest body in the world.*
* As of December, 2010, researched by Icom.
Energy-saving 3.7V circuitry
The IC-M24 is powered by the 3.7V Lithium-Ion battery pack, BP-266, to reduce the capacity and weight of the radio. A newly developed PA circuit provides 5W (approx.) RF output and powerful 600mW (typ.) audio even at this low voltage, while saving battery consumption for 10 hours of operating time.*
* Typical operation with Tx (Hi): Rx: standby=5:5:90. US patent pending.
Easy to see large LCD
The large, easy to see LCD (32×16 mm) offers a clear 2 - digit channel number indication.
Built-in regular charger circuitry
Recharge the IC-M24 by plugging the wall charger directly in to the radio. By eliminating exposed metal charging points, the IC-M24 is even more protected from water damage.
Volume loud and mute functions
The volume loud/mute functions temporarily change the volume to the maximum/minimum level with two touches of a button. Depending on the background noise level, you can easily change the volume level to capture the received message.
Other features
- Submersible construction equivalent to IPX7
(1m depth for 30 minutes) - Dual/Tri-watch functions
- Auto scan function
- One-touch access to Ch 16
- 4-step battery life indicator
- Tag scan and Favorite channel functions
- Weather channel with weather alert (USA version)
- AquaQuake™ draining function
AQUAQUAKE is a trademark of Icom Incorporated. All other products of brands are registered trademarks or trademarks of their respective holders.
BATTERY PACK
| BP-266* | (Li-Ion) | | |
DESKTOP CHARGER
| BC-119N | Rapid charger | | |
| BC-199S* |
| BC-145S* | | |
CHARGER ADAPTER
| AD-123 | (Use with BC-119N) | | |
| CP-24 | | | |
| MB-124 | | | |
| FA-SC58V | |
| IC-M24 | |
| Frequency range | Tx | 156.025–157.425MHz | Rx | 156.050–163.275MHz |
Dimensions (W×H×D) | 58.5×128.5×34.5 mm; | |
Weight (approx.) | 260g; 9.2oz | |
Current drain (approx.) | Transmit (High) | 2.3A | Max. audio | 350mA typ. |
Sensitivity (at 20dB SINAD; emf) | 0.25dBμV typical | |
Intermodulation rejection | 70dB | |
Audio output power (With an 8Ω load) | 600mW | |
RF output power | 5W/1W approx. | |
Ingress Protection Standard | Waterproof | IPX7 (Waterproof protection) | |
Environmental Test Standard | Vibration | IEC60945 | |
All stated specifications are subject to change without notice or obligation.
