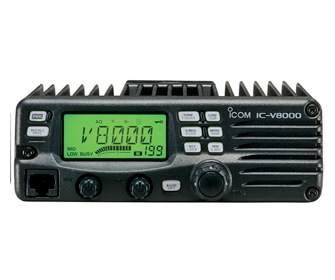

144 MHz FM Mobile Transceiver IC-V8000 LM

Pasted Graphic 1logo_std_mil

75W of Professional Quality and Power
Powerful 75W of output power
Remote control microphone, HM-133V* for convenient full remote control operation
* Optional for some versions.
207 Memory channels with 6-character channel name divided into 10 memory banks
Other features
  • Front mounted speaker for clear audio
  • Durable one-piece, die-cast aluminum chassis
  • Selectable amber and green backlight
  • Built-in CTCSS and DTCS encoder/decoder
  • DTMF encoder with 10 DTMF memories
  • 10dB Squelch attenuator
  • Optional DTMF decoder unit, UT-108 with ANI
  • Optional voice scrambler unit, UT-109 or UT-110

SPEAKER-MICROPHONES
HM-133_V
HM-133V
HM-154 HM-154
HM-154T HM-154T

EXTERNAL SPEAKER
SP-10
SP-10



MIC EXTENSION CABLES
OPC-440
5.0m: 16.4ft
OPC-440
no_photo
OPC-647


SPEAKER EXTENSION CABLE
OPC-441
5.0m: 16.4ft
OPC-441



MIC ADAPTER CABLE
OPC-589
13-pin ACC long cable for AT-180 7.0m;22ft
OPC-589



DC POWER CABLES
OPC-1132A
3.0m: 9.8ft
OPC-1132
OPC-347
7.0m: 23ft
OPC-347



CLONING CABLES
OPC-474
Between transceivers
OPC-474
no_photo
Transceiver to PC RS-232C cable
OPC-478


INTERNAL UNITS
UT-108_R
DTMF Decoder
UT-108
UT-109_R
Voice scrambler unit
(Non-rolling type)
#01 requied.
UT-109
UT-110_R
Voice scrambler unit
(Rolling type)
#01 requied.
UT-110

CLONING SOFTWARE
no_photo
CS-V8000


29⁄32×131⁄32×529⁄32in

Frequency coverage
(Differs according to version )

Guaranteed range 144–148MHz
Rx working range 136–174MHz

Dimensions
(W×H×D; Proj. not included)

150×50×150mm ;
5

Weight
(approx.)

1.09kg; 2.2lb

Output power
(typical values)

75, 25, 10, 5 W selectable

Sensitivity
(at 12dB SINAD)

More than 6kHz at –6dB
Less than 14kHz at –60dB

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage (Altitude)

500.4 I

Low Pressure Operation (Altitude)

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 II

Humidity Induced

507.4

Humidity Aggravate

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV


Also meets equivalent MIL STD 810 -C, -D and -E.
