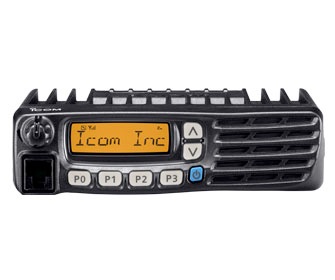

VHF/UHF Mobile Transceiver IC-F5023 IC-F6023

Pasted Graphiclogo_std_millogo_std_mdc

Features, Performance, Value For the Everyday LMR User
The IC-F5023 series is ideal for small-to-mid sized systems for public safety, large industry to light commercial users. The IC-F5023 series offers multiple signaling, advanced scanning, improved external channel control capability and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.
128 memory channels
001128 channels (Max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.
Front mounted speaker
4 watts (typ.) front mounted speaker delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operation.
6 programmable buttons
A pair of up/down and P0–P3 function assignable buttons allow you to customize functions to meet specific needs. An independent volume knob offers simple, convenient operation.
MIL grade rugged construction
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5023 series provides reliable operation over the long term in all manners of rugged environments.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The IC-F5023 series has added CTCSS/ DTCS high speed decode and 2- Tone decode accuracy.
MDC 1200 compatible
The following MDC features are available with the built-in MDC signaling.
  • PTT ID (TX/RX)
  • Radio check (RX)
  • Radio stun (RX)
  • Radio revive (RX)
  • Emergency TX/RX (No ACK)
  • 5 alias table (Max.)
Multiple 2-Tone, Multiple 5-Tone
Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.
  • Beep sound
  • Answer back
  • Scan
  • Bell icon
  • Radio stun/kill/revive
Radio kill, stun and revive
The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporary locked out until the revive command is received or the unlock password is entered.
Lone worker function
When the radio is not operated for a preset period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.
Mode dependent scan
In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel, the scanning list automatically changes to the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don’t have to change the scanning setting.
Tx channel setting and Talk back function
The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channel are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.
Wide frequency coverage
The IC-F5023 series covers a wide frequency range in one version (VHF 136– 174MHz, UHF 400–470, 450–520MHz).
Optional internal units
The IC-F5023 series has a 40-pin option slot for adding an optional internal unit. Optional voice scrambler units, UT-109R or UT-110R provide secure private conversation. Optional DTMF decoder unit, UT- 108R offers DTMF decode capability.
External memory channel control with optional ACC cable
002With the optional OPC-1939 D-SUB 15- pin ACC cable, the IC-F5023 series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition sensing function, external PTT, PC command, horn honk, audio output and modulated signal input depending on programming.
Other features
  • Wide and narrow channel spacing (25/ 12.5kHz) is programmable per channel
  • Embedded ESN
  • ±2.5ppm frequency stability
  • Microphone hanger action programmable
  • Optional DTMF microphone (HM-152T)
  • 8 DTMF autodial memories
  • BIIS 1200 PTT ID transmission
  • Power-on password function
  • Nuisance delete function
  • Time-out-timer, Lock-out penalty timer and more

HAND MICROPHONES
HM-152
HM-152
HM-152T
DTMF type
HM-152T
HM-148G
Self-grounding type
HM-148G
HM-148T
Self-grounding type with DTMF keypad
HM-148T
DESKTOP MICROPHONE
SM-25
SM-25



EXTERNAL SPEAKERS
SP-5
SP-5
SP-10
SP-10
SP-22
SP-22

INTERNAL UNITS
UT-108_R
DTMF Decoder
UT-108R
UT-109_R
Voice Scrambler
(Non-rolling type)
UT-109R
UT-110_R
Voice Scrambler
(Rolling type)
UT-110R

ACC CABLE
OPC-1939
15-pin
OPC-1939


General



IC-F5023
IC-F6023
Frequency coverage
136–174MHz
400–470MHz
450–520MHz
Number of channels
Max. 128 Ch/ 8 zones
Channel spacing
12.5/25kHz
Type of emission
16K0F3E, 11K0F3E
Current drain
(approx.)
Tx
5.0/5.0A (VHF/UHF)
Rx
Max. audio
0.7A
Stand-by
250mA
Dimensions
(projections not included; W×H×D)
150×40×117.5 mm
Weight (approx.)
0.8kg

Transmitter



IC-F5023
IC-F6023
RF output power
25W
Spurious emissions
70dB (typ.)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)

Receiver



IC-F5023
IC-F6023
Sensitivity at 12dB SINAD
0.25μV (typ.)
Adjacent channel selectivity (W/N)
75dB/65dB (typ.)
Spurious response rejection
80dB min.
Intermodulation rejection
75dB (typ.)
AF output power
(at 5% distortion with an 4 Ω load)
4W (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F5023 IC-F6023
Number of option slots

1

CTCSS/ DTCS

encoder

Available

decoder

Available

2-Tone

encoder

Available

decoder

Available

5-Tone

encoder

Available

decoder

Available

DTMF autodial

Available

DTMF decoder

UT-108R

Voice Scrambler

Inversion

-

Non-rolling

UT-109R

Rolling

UT-110R

APCO P25 digital

-

AES encryption

-

DES encryption

-

IDAS digital

-

MPT 1327

-

MDC 1200

Available (Limited functions)

LTR™ trunking

-

PassPort

-

Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4 I

Low Temperature Operation

502.4 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Humidity Induced

507.4

Settling Dust

510.4 III

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV


Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
